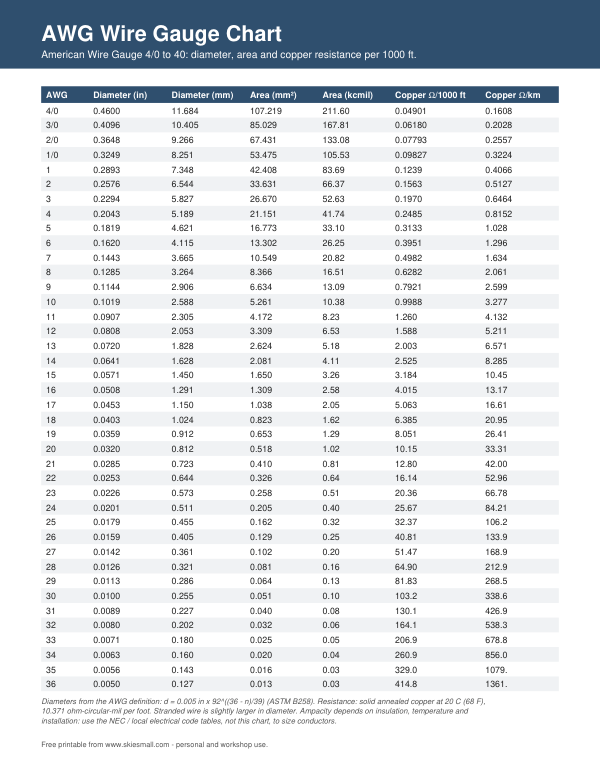

AWG Wire Gauge Chart (Printable PDF and Excel)
This American Wire Gauge (AWG) chart lists every size from 4/0 down to 40 AWG with the diameter in inches and millimetres, the cross-section in mm² and kcmil, and the resistance of solid copper per 1,000 feet and per kilometre at 20 °C.
Free printable · PDF
- 2 pages
- US Letter — choose “Fit to page” for A4
- PDF, 6 KB
Free for personal, family and classroom use.
Need to edit it? The full pack has the editable Excel and Word files plus all 5 sheets — $3.00, one-time.
Your free PDF is downloading. Want all 5 sheets in one download, plus the editable Excel and Word files so you can change the text?
Instant download · 7-day refund · Secure checkout by Stripe
The values are calculated from the AWG definition used in ASTM B258, so they are exact for solid round wire; stranded conductors are a little larger. Use it to compare gauges, convert AWG to metric sizes or estimate voltage drop. For ampacity, follow the NEC or your local code tables.
Good for
- Converting AWG sizes to mm and mm²
- Looking up copper resistance per 1000 ft for voltage-drop estimates
- A bench reference for electronics and wiring projects
Tip: Every 3 gauges roughly doubles or halves the cross-section area; every 6 gauges roughly doubles or halves the diameter.
